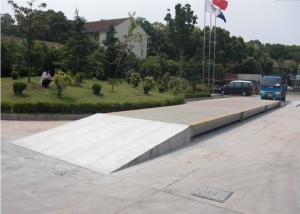

8mm Checker Plate Pitless Type Weighbridge Platform Weighing Scales
SCS series electronic truck is a new generation of truck scale which depends on today’s domestic truck scale advantage. It’s gradually developed by our own technology and long period of overloading tests.
The main beam is sturdy U type structure. The weighing platform panel selects Q235 flat and splices into the closed box-type structure, which is a reliable structure.
The welding technology, effectively ensure the flatness of such a large weighing platform, geometrical size and rational distribution of welding stress.
Welding platform design is standardizing, modularized, serialized, it can from to a variety of models freely, the system select high precision double shear beam or column weighing sensor, weighing indicator has rich features, strong storage and with a battery that can continue using when the power off, as well as a high precision, low temperature drift and stronger anti-interference stainless steel waterproof junction box, and signal shielded cable to make the measurements system multifunctional and reliable.
|
Item
|
Capacity
|
Platform Size
|
Section/parts
|
Across Bars
|
Load Cell
|
|
SCS-30t
|
30t
|
3mx6m
|
1 / 2
|
2
|
4 pcs
|
|
SCS-50t
|
50t
|
3mx12m
|
2 / 4
|
3
|
6 pcs
|
|
SCS-60t
|
60t
|
3mx12m
|
2 / 4
|
3
|
6 pcs
|
|
SCS-60t
|
60t
|
3mx16m
|
3 / 6
|
4
|
8 pcs
|
|
SCS-60t
|
60t
|
3mx18m
|
3 / 6
|
4
|
8 pcs
|
|
SCS-80t
|
80t
|
3mx12m
|
2 / 4
|
3
|
6 pcs
|
|
SCS-80t
|
80t
|
3mx16m
|
3 / 6
|
4
|
8 pcs
|
|
SCS-80t
|
80t
|
3mx18m
|
3 / 6
|
4
|
8 pcs
|
|
SCS-100t
|
100t
|
3mx12m
|
2 / 4
|
3
|
6 pcs
|
|
SCS-100t
|
100t
|
3mxx16m
|
3 / 6
|
4
|
8 pcs
|
|
SCS-100t
|
100t
|
3mX18m
|
3 / 6
|
4
|
8 pcs
|
